Any size and type of wire can be formed and shaped either by hand, multislide or
CNC wire forming machines.
Hand bending applications generally refer to small runs where the quantities are
small and is more commonly used to create samples for future larger runs.
Multislide machines are specialised machines that straighten, cut and form wire
into different shapes in medium to high volumes. There is generally a high set up
cost due to the cost of tooling, but this additional cost is compensated by the low
cost per unit due to the high production speeds of up to 3600 pieces per hour.

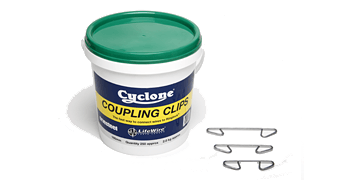

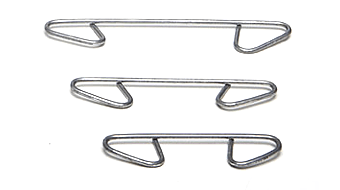

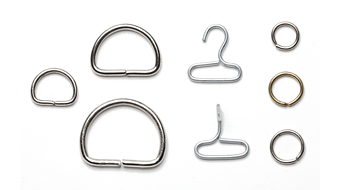

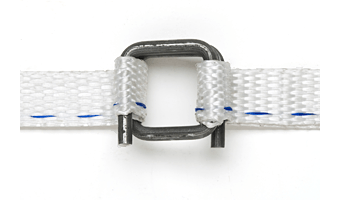

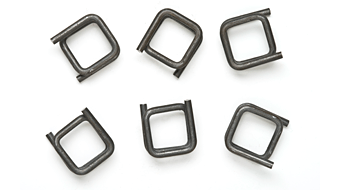

Bag Ties / Rod Ties / Loop Ties Bucket Handles Clips / Rings Coupling Clips Curtain Hooks Ground Staples Wall Ties Wickets Wire Buckles Wire Coat Hangers

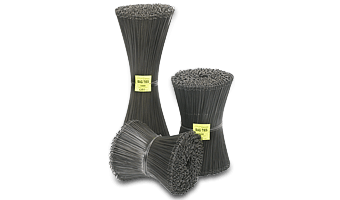

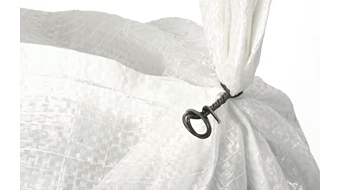

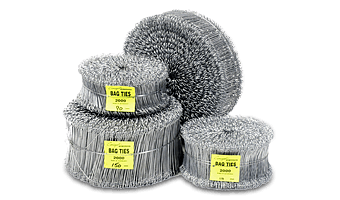

For use in bundling, tying reo, closing bags and many other uses.
The following sizes are always all available ex-stock.
|
BAG TIES / ROD TIES
| |||||||
|---|---|---|---|---|---|---|---|
|
Length
|
Wire diameter
|
Qty/Bdl
|
Black
|
Gal
|
Plastic Coated
|
SS
|
|
â—‹
|
Smaller coils available upon request
Denotes available ex stock (subject to prior orders) Check with office for leadtimes on non-stock items Denotes made to order |
||||||
|
90mm
|
1.0mm
|
2000
|
|
||||
|
110mm
|
1.0mm /1.5mm
|
2000
|
|
|
|
||
|
125mm
|
1.5mm
|
2000
|
|
|
|||
|
150mm
|
1.5mm
|
2000
|
|
|
|
||
|
175mm
|
1.5mm
|
2000
|
|
|
|
||
|
200mm
|
1.5mm
|
2000
|
|
|
|||
|
250mm
|
1.5mm / 2.0mm
|
2000
|
|
|
|||
|
300mm
|
1.5mm / 2.0mm
|
2000
|
|
|
|||
|
380mm
|
2.0mm
|
1000
|
|
|
|||
|
410mm
|
2.0mm
|
1000
|
|
|
|||
|
460mm
|
2.0mm
|
1000
|
|
|
|||
|
530mm
|
2.0mm
|
1000
|
|
|
|||
|
580mm
|
2.0mm
|
1000
|
|
|
|||
|
680mm
|
2.0mm
|
1000
|
|
|
|||

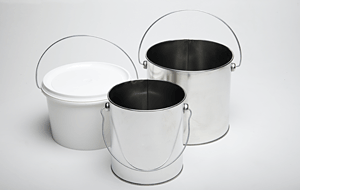

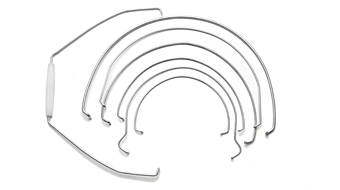

A full range of handles is available from the two and four finger for smaller cans
and drums up to full size handles for 10 litre buckets.

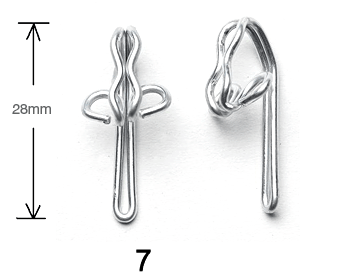

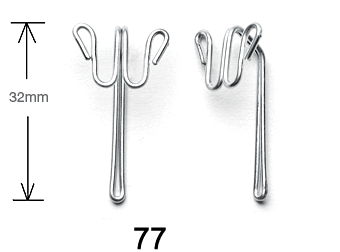

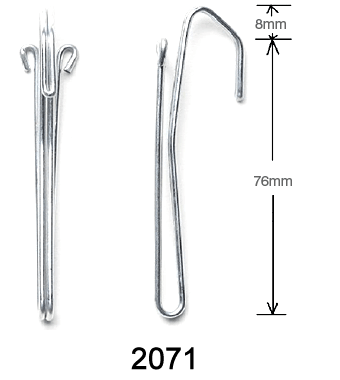

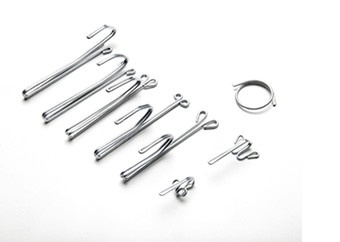

Concept Wire Industries manufacture the full range of slip-in curtain hooks, gathering hooks and curtain split rings. We are currently the only company manufacturing curtain hooks in Australia and we are proud to offer what we believe are the best quality curtain hooks available. Inferior alternatives are sold through retail outlets to the unsuspecting homemaker, but Concept Wire Industries curtain hooks are the preferred choice of professional curtain makers around Australia.
By using Australian made wire with the highest tensile strength possible and 10 multislide machines ensuring a consistent and uniform curtain hook, Concept Wire Industries manufactures curtain hooks that will not sag or bend under the weight of the heaviest curtain.
Our curtain hooks are made using a fully galvanised wire that has a 35g/m² zinc coating. All other curtain hooks are electro zinc plated after manufacture. This coating may look shinier, but doesn’t offer the guaranteed full coating or the corrosion protection offered by a fully hotdipped galvanised coating as used by Concept Wire.

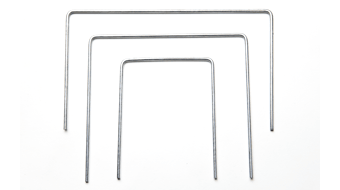

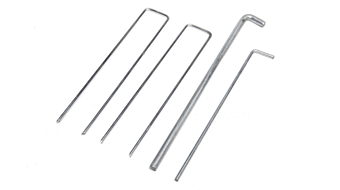

Used to hold weed matting, landscaping fabric and artificial turf

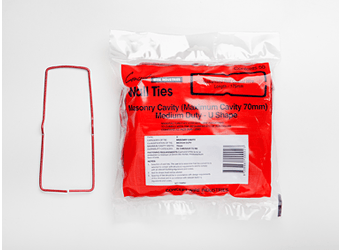

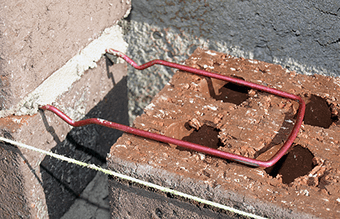

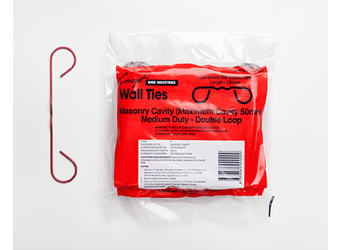

We are one of the largest manufacturer of wall ties in Australia, and can guarantee and provide wall ties that are fully compliant with Australian Standard AS2699.1.2000.
All red galvanised wall ties are manufactured using Australian made ONESTEEL galvanised red walltie wire which has a guaranteed coating of 470g/m². This ensures peace of mind when using our wall ties in any brick cavity or brick veneer construction.
Test certificates are available on all of our walltie products, and all packaging associated with our wallties also fully complies with Australian Standard AS2699.1.2000.

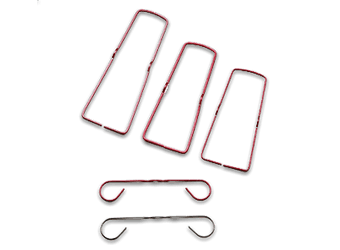

We manufacture the full range of wallties including double loop and U-shape, and varying lengths including 175mm 195 and 225mm in both medium duty and heavy duty.
|
WALL TIES
| |||||
|---|---|---|---|---|---|
|
Part No.
|
Description
|
Rating
|
Cavity
|
Qty/Bag
|
Qty/Ctn
|
|
|
|||||
|
WT180mddl
|
Red gal 180mm walltie double loop |
R0-R3
|
50mm
|
50
|
10
|
|
WT175mdu
|
Red gal 175mm walltie U-shaped |
R0-R3
|
70mm
|
50
|
10
|
|
WT195mdu
|
Red gal 195mm walltie U-shaped |
R0-R3
|
90mm
|
50
|
10
|
|
WT225mdu
|
Red gal 225mm walltie U-shaped |
R0-R3
|
120mm
|
50
|
5
|
|
WT195HDU
|
Red gal 195mm walltie U-shaped |
R0-R3
|
90mm
|
25
|
10
|
|
WT225HDU
|
Red gal 225mm walltie U-shaped |
R0-R3
|
120mm
|
25
|
10
|

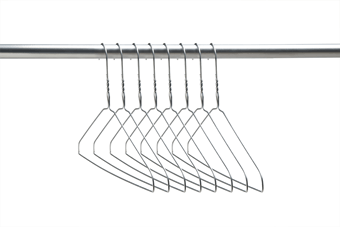

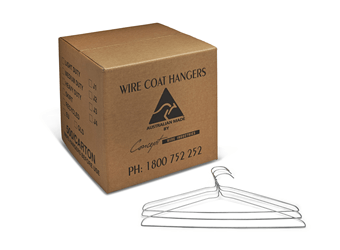

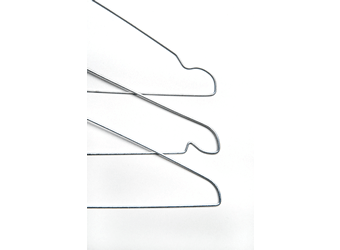

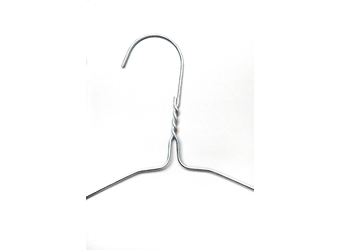

After the purchase of SB Rayner and the hanger division of Jex Industries in 2012, Concept Wire has become Australia’s leading manufacturer of wire coat hangers.
With 6 European built machines capable of producing in excess of 20 000 000 hangers per year, and with 4 different thickness wires to choose from and the option of a standard, trouser or skirt hanger, Concept Wire can meet all of your hanger requirements.
We pride ourselves on setting the benchmark when it comes to quality hangers, therefore all hangers manufactured by Concept Wire use hot dipped galvanised wire that complies with Australian Standard AS4534.
No silver paint, clear varnish or bare metal here, only a real zinc galvanised coating that can withstand the toughest commercial laundries and dry cleaners.
Our hangers have also proven to be consistently stronger against imports who generally use either substandard or under spec wire, and more often than not have NO zinc coating at all.
Alternatively imported hangers have also found to have 20% paint instead of steel.
Concept Wire guarantee you the best hangers currently available in the market today.
Jiffy Hooks and Pattern hooks are also available.
