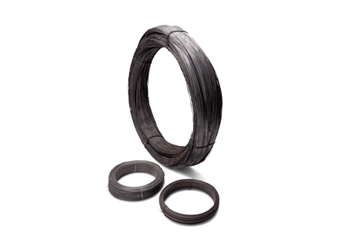

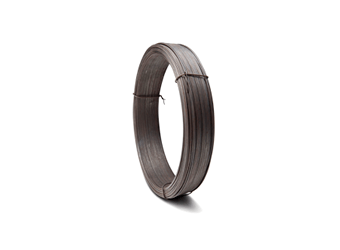

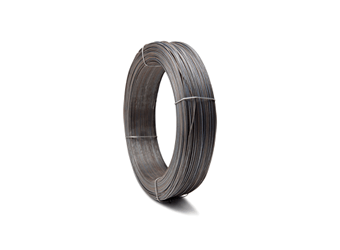

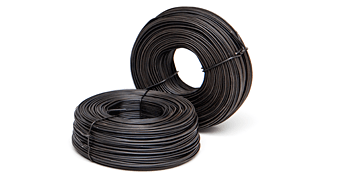

Annealed tie wire, also called black iron wire, soft annealed and tie wire, is a soft wire that is easily bendable and suitable for manual tying and bundling.

Annealed tie wire is used throughout the construction and manufacturing industries. Common uses include bundling reo, lengths of steel, and mesh.

ANNEALED TIE WIRE				AUSTRALIAN MADE & IMPORTED
Diameter	Description	Tolerance (mm)	m/kg	Tensile (mPa)	Handy	50kg	150kg	800kg / 1000kg
'Handy'	Refers to small handy size coils including 1.42kg, 3kg, 5kg and 10kg coils Smaller coils available upon request Denotes available ex stock (subject to prior orders) Check with office for leadtimes on non-stock items
1.25mm	black annealed tie wire	±0.02	103.7	300/500
1.40mm	black annealed tie wire	±0.02	82.8	300/500
1.50mm	black annealed tie wire	±0.02	72.1	300/500
1.57mm	black annealed tie wire	±0.02	65.8	300/500
2.00mm	black annealed tie wire	±0.04	40.5	300/500
2.50mm	black annealed tie wire	±0.04	25.9	300/500
3.15mm	black annealed tie wire	±0.04	16.3	300/500
4.00mm	black annealed tie wire	±0.05	10.1	300/500

• Lengths ranging from 90mm to 725mm
• Wire diameters including 1.0mm, 1.25mm, 1.5mm, 1.57mm, 1.6mm and 2.0mm
• Galvanised, black annealed, stainless and plastic coated wires available
• 8 machines to provide custom sizes to meet customers requirements

The following sizes are always all available ex-stock.

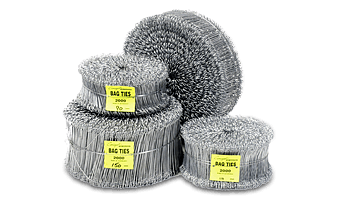

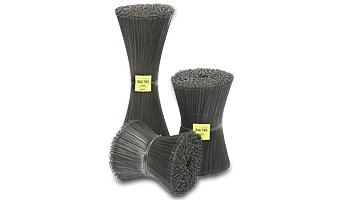

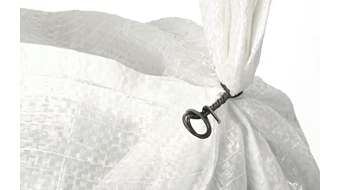

BAG TIES / ROD TIES
Length	Wire diameter	Qty/Bdl	Black	Gal	Plastic Coated	SS
â—‹	Smaller coils available upon request Denotes available ex stock (subject to prior orders) Check with office for leadtimes on non-stock items Denotes made to order
90mm	1.0mm	2000				â—‹
110mm	1.0mm /1.5mm	2000				â—‹
125mm	1.5mm	2000				â—‹
150mm	1.5mm	2000				â—‹
175mm	1.5mm	2000				â—‹
200mm	1.5mm	2000				â—‹
250mm	1.5mm / 2.0mm	2000				â—‹
300mm	1.5mm / 2.0mm	2000				â—‹
380mm	2.0mm	1000				â—‹
410mm	2.0mm	1000				â—‹
460mm	2.0mm	1000				â—‹
530mm	2.0mm	1000				â—‹
580mm	2.0mm	1000				â—‹
680mm	2.0mm	1000				â—‹

Custom sizes are available on request.

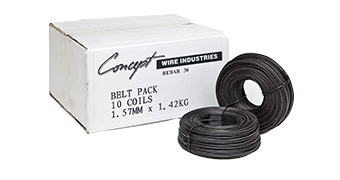

Also known as handy coils, belt pack coils or rebar coils, belt coils are small coils of 1.57mm annealed tie wire wound into small coils of 1.42kg designed to be used in the “IDEAL” style reeler.

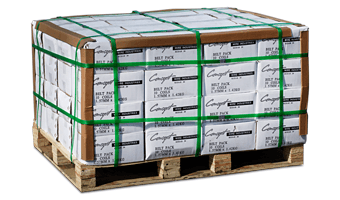

The wire in the belt coil is usually lightly oiled to prevent rusting and is wrapped individually in grease proof paper, and then packed 10 coils to a carton.

There are plenty of inferior quality belt coils available in the market today, with problems such as the wire being too brittle, not annealed properly or breaking when twisted.

Concept Wire Industries belt coils have been supplied to all of the major reinforcing wire manufacturers in Australia for the last 10 years with no complaints. Our belt coils are fully annealed, lightly oiled and made from high quality feed material. This ensures a soft malleable wire that twists easily and cuts cleanly.

The same wire in the belt coils is also available in 3, 5 and 10kg handy coils.

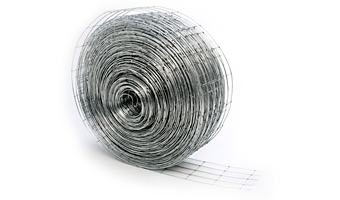

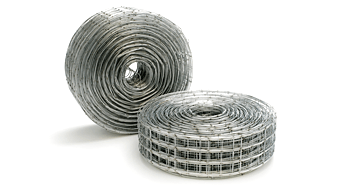

• Available in two different sizes, brick mesh is designed to strengthen and reinforce brickwork. This in turn reduces cracking in brick walls and maintains integrity within the brick structure.
• Manufactured from hot dipped galvanised wire.

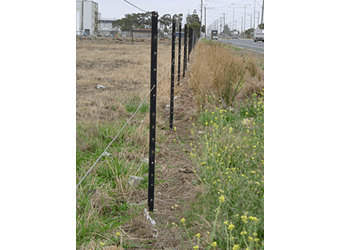

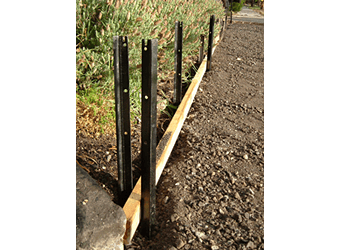

Our stellar posts are available in all the common sizes ranging from 450mm to 2400mm, as well as available in the standard black bitumen coating or the hot dip galvanised coating.

Posts are also available in standard duty and heavy duty.

Standard duty posts are 1.58kg/m and heavy duty posts are approx 30% heavier at 2.04kg/m.

For light industrial, garden and hardware applications we recommend the standard duty stellar post. The heavy duty stellar post is recommended for heavy duty rural applications.

Click the diagram on the right to open a large view of hole positions in a new browser window.

STELLAR POSTS
Size	Part No.	BLACK Std Duty	BLACK Heavy Duty	HOT DIP GALVANISED
	Denotes available ex stock (subject to prior orders) Check with office for leadtimes on non-stock items
450	SP450
600	SP600
900	SP900
1350	SP1350
1500	SP1500
1650	SP1650
1800	SP1800
2100	SP2100
2400	SP2400

Post caps, post drivers and post lifters also available, see TOOLS.

Various tools are available to assist in using the range of Concept Wire Industries products.

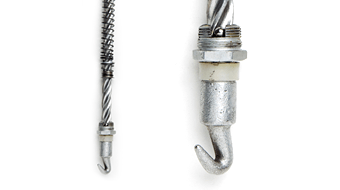

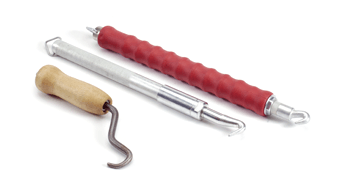

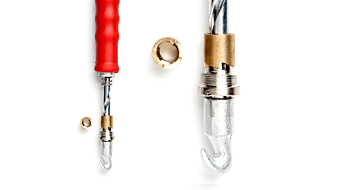

Bag Tie Twisting Tool (Rod Tying Tool) – Part No. AHT or MHT

For use in quickly applying bagties.

• Heavy duty industrial design
• 4 ball bearings to ensure smooth, effortless and long lasting performance
• Operator simply pulls the tool towards them and the tool twists the wire rod tie automatically.

The MHT is similar in design to the AHT except the MHT is made in Australia and a full range of spare parts are available for guaranteed operation into the future.

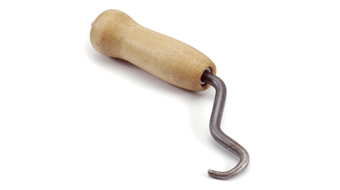

Hand Tying Tool – Part No. HTT

• Manual method of applying bag ties (rod ties).

Crescent Style Nippers - 250mm – Part No. TCP250CV

These are the Crescent® style nippers with large rounded jaws. Manufactured in chrome-vanadium steel, the large strong jaws provide great leverage for providing a tight twist. The handles are double dipped for extra long protection.

Knipex Style Nippers - 250mm – Part No.TC250CV

These are the Knipex® style nippers with a small rounded jaw ensure you can twist and cut tie wire in the tightest locations. The nippers are manufactures in chrome-vanadium steel, and the handles are double dipped for extra long protection.

Mini Bolt Cutters – Part No. TMBC

These smaller versions of the larger bolt cutter are the prefect tool for cutting most wire types up to a diameter of 4mm. The lever action, together with hardened jaws ensure a clean and easy cut every time.

Metal Belt Reeler – Part No. MBR

Also known as the Ideal® style reeler, the MBR is an aluminium  reeler designed to worn on the waist and used to easily dispense belt coils. Although there are many cheap copies on the market, The Concept Wire MBR has proven its performance and reliability in the construction industry for nearly 10 years. We believe it is that good, we offer the only 12 month warranty on parts and labour in the market today.

• 12 month warranty
• Heavy duty, industrial quality
• Ideal for use with belt coils

Leather Belt and Nylon Belt

These belts are designed for use with the MBR “Ideal” style reeler.

Post Driver – Part No. SPD800

Heavy duty post driver to drive stellar posts (star posts®) into the ground.

• Handle either side
• Thick steel plate ensure posts are driven quickly and evenly into the ground with minimal effort.

Post Lifter – Part No. SPL-C

A new product in 2010, this Australian patented post lifting tool is like no other post lifting tool currently on the market. With the patented gripping system, the SPL-C can grab the fins of the stellar post (also known as starpost®) from as low as 3” or 7cm from ground level. Therefore even when the post is hammered into the ground with only the top showing, as long as there is still 3” (75mm) showing the post can still be easily and effectively pulled out of the ground so that it can be used time and time again.

• Gripper and lever action
• Ideal for landscapers, formwork and concreters
• Ensures posts can be used time and time again

Ring Plier Gun, Netting Pliers

Also known as ring fasteners, easy to use pliers, either with or without magazine to ensure the quick securing of wire mesh/netting or plastic barrier mesh to wire strands.

GC Wire Tying Machine – Part No. GCWTM

The GC is a manual wire tying machine which offers constant tension, wire twisting and cutting in the one tool.

• Unique twist seal that absorbs shock allowing packs of timber to be tipped from a truck without breaking
• Suitable for packs of timber, pine logs and paper
• Uses 3.2mm high tensile galvanised wire
• Reversible wearing parts effectively double the lifespan of the machine
